Enhancing Conveyor Belt Monitoring for Optimal Asset Management

The Importance of Effective Conveyor Belt Monitoring in Industrial Operations for Maximising Conveyor Reliability


Conveyor belts are the backbone of industrial operations in sectors like mining operations and manufacturing. Monitoring the condition of conveyor belts in real-time is essential for maintaining operational efficiency and extending the lifespan of these assets. - Miniotec
Conveyor belts are the backbone of industrial operations in sectors like mining operations and manufacturing. Monitoring the condition of conveyor belts in real-time is essential for maintaining operational efficiency and extending the lifespan of these assets.

Key Takeaways:


  1. Effective real-time conveyor belt monitoring is essential for preventing costly downtime and enhancing operational efficiency in industries like mining and manufacturing.

  2. Advanced technologies, such as BRaiDS, address critical challenges like belt mistracking, impact damage, belt rip and abrasive material wear, ensuring the longevity of conveyor systems.

  3. BRaiDS offers real-time anomaly detection and predictive maintenance, enabling proactive interventions and reducing maintenance costs.

  4. The system’s ease of integration, minimal ongoing maintenance and non-destructive monitoring methods make BRaiDS a practical and future-proof solution for industrial operations.


Introduction


Conveyor belts are the backbone of industrial operations in sectors like mining operations and manufacturing. These systems are crucial for the continuous movement of materials, ensuring efficient and uninterrupted production processes. However, without effective conveyor belt monitoring, these vital systems can suffer from unexpected failures, leading to costly repairs, production downtime and significant financial losses.


Advanced monitoring technologies play a pivotal role in enhancing the efficiency and reliability of conveyor belt systems and belt life. - Miniotec
Advanced monitoring technologies play a pivotal role in enhancing the efficiency and reliability of conveyor belt systems and belt life.

Monitoring the condition of conveyor belts in real-time is essential for maintaining operational efficiency and extending the lifespan of these assets. Advanced monitoring systems detect anomalies early, allowing for timely maintenance and preventing catastrophic failures. The ability to monitor belt condition, detect rip and misalignment and measure belt speed and wear, enhances the reliability of conveyor systems and ensures optimal performance.


In this article, we explore the common challenges faced by conveyor belt systems, such as belt mistracking, impact damage and abrasive material wear. We will delve into the role of advanced technologies in addressing these issues, including real-time anomaly detection and predictive maintenance. By implementing a robust conveyor belt monitoring system, as Miniotec offers with BRaiDS (Belt Rip and AI Damage Detection System), industries can achieve greater reliability, efficiency and safety in their operations. Join us as we uncover the benefits of modern conveyor belt monitoring and how it can transform asset management.


More than 80% of conveyor belt damage occurs at a transfer chute area. Detecting these tears early is crucial, as even minor tears can lead to significant and costly damage if left unaddressed. BRaiDS differentiates itself by offering advanced, real-time anomaly detection and monitoring at these critical points, ensuring early intervention and preventing costly disruptions.

Three Key Critical Challenges in Conveyor Belt Systems


Conveyor belt systems face several critical challenges that can hinder their efficiency and longevity. Addressing these challenges is crucial for maintaining optimal performance and minimising operational disruptions.


Belt Mistracking


Belt mistracking occurs when the conveyor belt is no longer aligned properly on the conveyor structure. This misalignment can lead to significant edge damage, fraying the sides of the belt and potentially reducing the system's overall capacity. Several factors contribute to belt mistracking:


  • Out-of-alignment conveyor structures: When the structure supporting the conveyor belt is not perfectly aligned, it can cause the belt to drift off course. This misalignment can be due to improper installation or gradual shifts over time.

  • Off-center belt loading: Uneven distribution of material on the conveyor belt can push the belt to one side, leading to mistracking.

  • Accumulation of materials on rolling components: Debris or residue build-up on rollers and pulleys can cause uneven surface contact, pushing the belt off track.

  • Crooked splices: Misaligned or improperly executed splices can create an uneven surface, causing the belt to veer off its intended path.

  • Dirt or residue on the belt or pulleys: Contaminants on the belt or pulley surfaces can alter traction, contributing to mistracking.


The impact of belt mistracking on system efficiency is profound. It not only accelerates wear and tear but also leads to frequent maintenance interventions and unplanned downtime. Proactive monitoring and immediate correction of belt alignment issues are essential to maintain the reliability of the entire conveyor system.


Impact Damage


Impact damage is another critical challenge for conveyor belt systems, typically occurring in areas where large or sharp materials strike the belt with force. Common in loading zones or under crushers, impact damage can nick, scratch or gouge the top cover of the belt, potentially tearing through it entirely. Factors contributing to impact damage include:


  • Large lumps of material (e.g., coal, iron ore): Heavy, dense materials can cause significant damage when they hit the conveyor belt.

  • Long drops without proper impact absorption systems: Materials falling from substantial heights without cushioning mechanisms can exert excessive force on the belt.

  • Handling of run-of-mine (ROM) materials: The initial processing of raw materials often involves larger, more abrasive particles, increasing the risk of impact damage.

  • Blast rods and metal stakes: These and other operational metal materials can inadvertently get mixed into the product stream, posing a significant threat to the conveyor belt.


Long-term effects of impact damage include rapid belt wear, reduced belt longevity and increased maintenance costs. Frequent repairs and replacements can disrupt production schedules and escalate operational expenses. Effective impact absorption systems and regular inspection are crucial in mitigating these issues.


Implementing advanced monitoring technologies can help detect and address impact damage early, thereby preserving the integrity and extending the life of conveyor belts. This proactive approach ensures operational efficiency and cost-effectiveness by minimising the risks associated with impact damage.


Abrasive Material Wear


Abrasive material wear is a significant concern, particularly in industries that handle materials like iron ore. Over time, abrasive materials can wear out the belt surface, compromising its integrity. This issue is especially pronounced in high-speed operations or those with substantial material throughput. Contributing factors to abrasive material wear include:


  • Misplaced materials underneath or along the edges of the belt: These materials can grind against the belt, accelerating wear.

  • Carryback build-up: Material that adheres to the underside of the belt after discharge can cause continuous abrasion.

  • Incorrect belt type for the materials being transported: Using a belt that is not designed to handle specific materials can lead to premature wear and tear.


The consequences of abrasive material wear are extensive, leading to increased maintenance efforts and potential system failures. Regular monitoring and appropriate material handling practices can help in mitigating these challenges.


The Role of Advanced Belt Condition Monitoring Technologies to Improve Conveyor Systems


Incorporating advanced belt condition monitoring technologies is essential for enhancing the reliability and performance of conveyor systems. These technologies enable proactive maintenance and immediate issue detection, ensuring smooth and uninterrupted operations.


Real Time Anomaly Detection

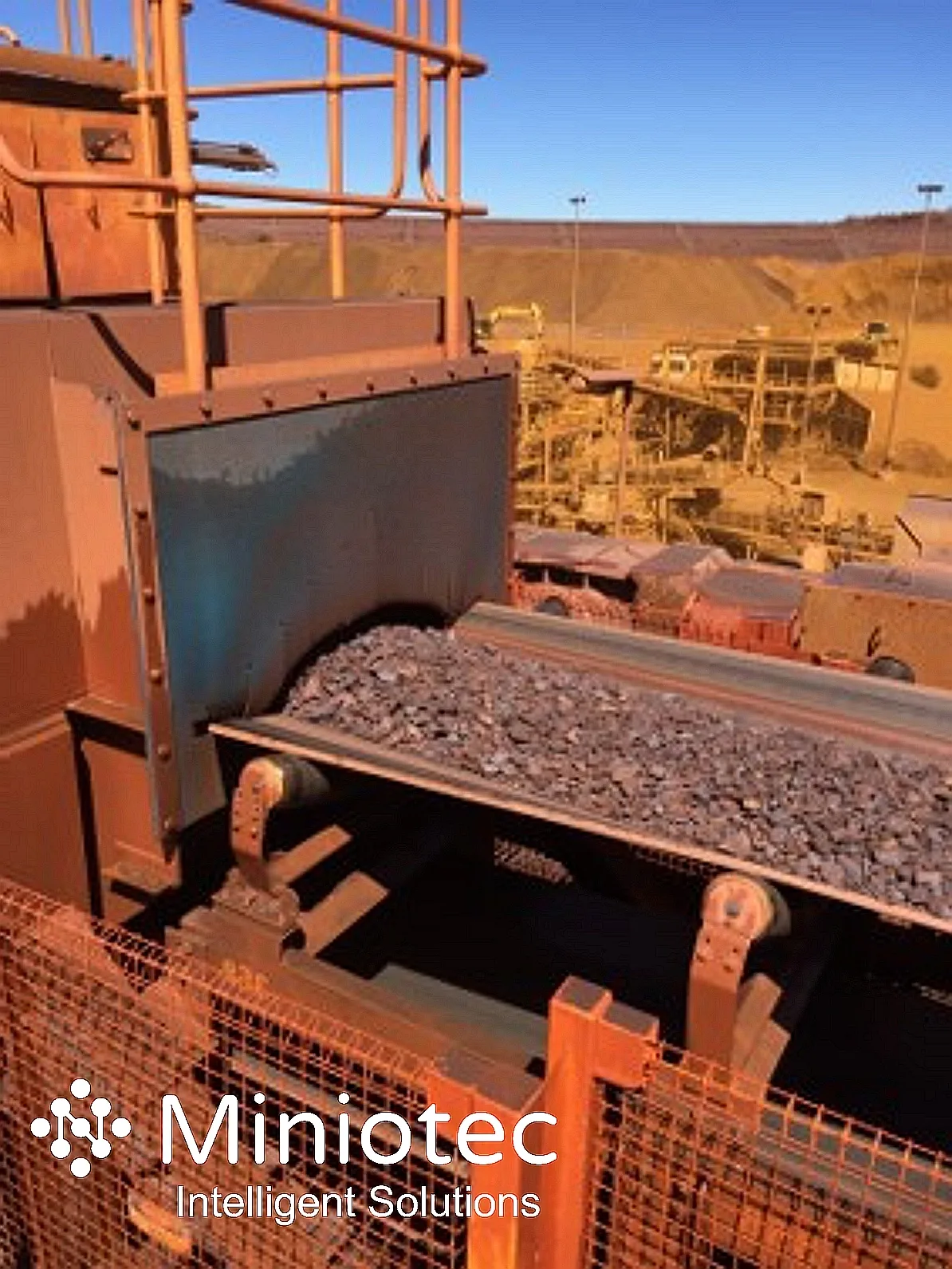

Conveyor belt systems face several critical challenges that can hinder their efficiency and longevity. - Miniotec
Conveyor belt systems face several critical challenges that can hinder their efficiency and longevity.

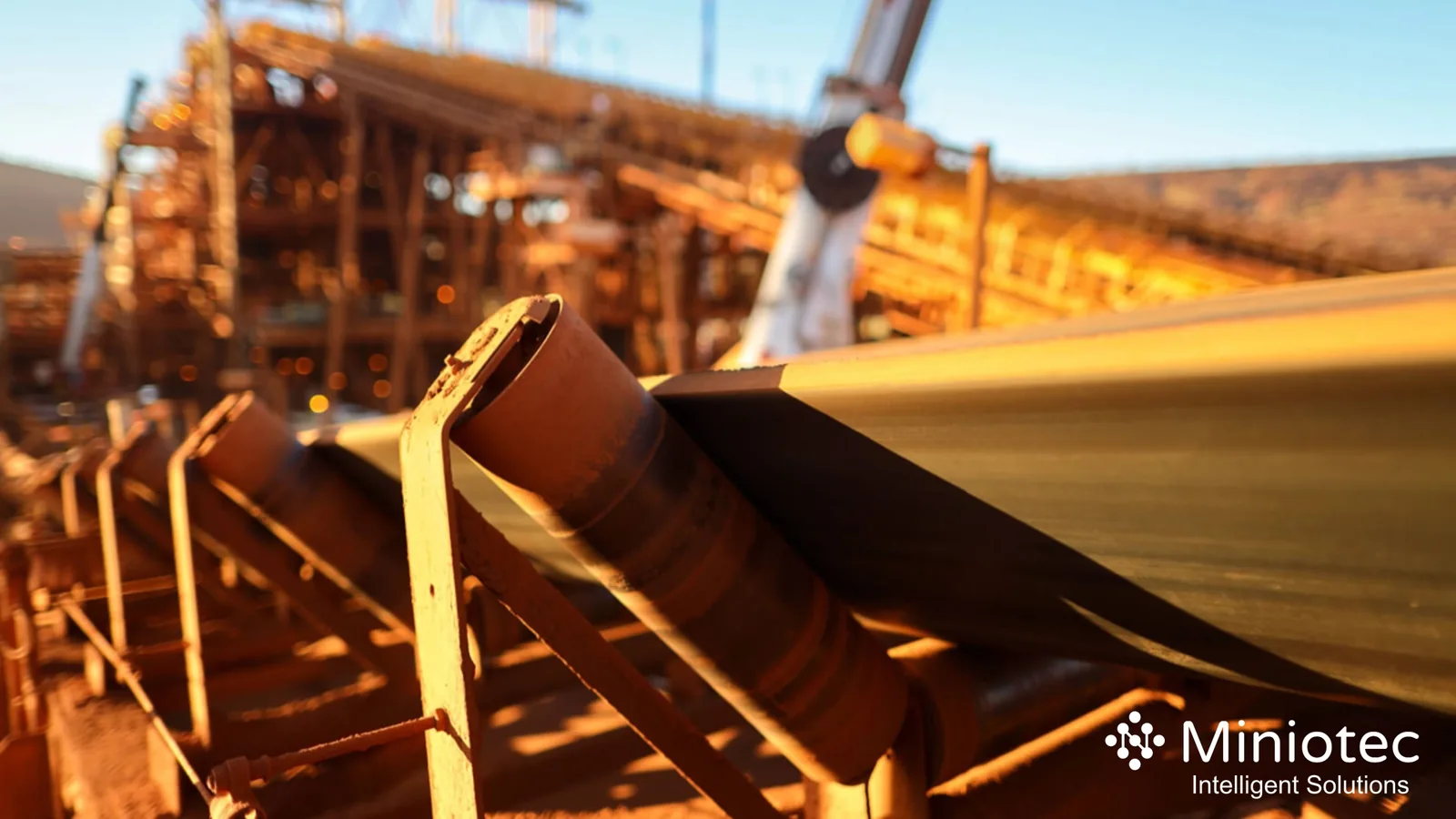

Advanced monitoring technologies play a pivotal role in enhancing the efficiency and reliability of conveyor belt systems and belt life. One of the most significant advancements is real-time anomaly detection. Real-time monitoring provides continuous, immediate insights into the condition of conveyor belts, enabling the swift identification of issues such as belt rips and mistracking. This is particularly important for timely rip detection. This instantaneous detection is crucial for minimising unplanned downtime and operational disruptions, ensuring that potential problems are addressed before they escalate into major failures.


The ability to detect anomalies in real time allows for immediate corrective actions, preventing minor issues from becoming costly repairs. For instance, real-time detection can identify a conveyor belt misalignment early, allowing operators to correct the belt position before it causes significant wear or damage. This proactive approach not only enhances the longevity of the belt but also ensures consistent operational performance.


Predictive Maintenance


Predictive maintenance is another transformative benefit of advanced conveyor monitoring system technologies. Unlike traditional maintenance approaches, which are often reactive and based on fixed schedules, predictive maintenance leverages data to predict potential failures before they occur. This method utilises Artificial Intelligence (AI) and Machine Learning (ML) algorithms to analyse historical and real-time data, identifying patterns and trends that indicate impending issues in conveyor belt condition.


The role of AI and ML in predictive maintenance is critical. These technologies can process vast amounts of data to identify when and where failures are likely to happen, enabling maintenance teams to address issues proactively. By identifying and potentially forecasting potential failures, operators can schedule maintenance activities during planned downtime, reducing the risk of unexpected breakdowns and the associated costs.


Predictive maintenance extends the lifespan of conveyor belts by ensuring that they are maintained only when necessary, based on actual wear and performance data rather than arbitrary timelines. This approach optimises maintenance resources and minimises disruptions, leading to more efficient and reliable conveyor belt operations.


Comprehensive Sensor Technology in Belt Conveyor Monitoring


The backbone of BRaiDS' advanced conveyor monitoring system is its comprehensive sensor technology. These sensors provide continuous monitoring of various aspects of conveyor belt performance, enabling a holistic assessment of the system’s condition. Key sensor technologies used in conveyor belt monitoring include:


  • Belt Alignment Sensors: Continuous monitoring of belt alignment helps prevent mistracking, a common issue that can lead to significant damage and reduced efficiency. These sensors ensure that the belt remains properly aligned, reducing wear and tear on the belt edges.

  • Vibration Sensors: Early detection of mechanical issues is facilitated through vibration analysis. These sensors can identify abnormal vibration patterns that may indicate problems such as abnormal increases in vibration or other mechanical faults, allowing for timely intervention.

  • Acoustic Monitoring: Detecting anomalies through sound pattern analysis is an innovative approach to early fault detection. Acoustic sensors can identify unusual sounds that may indicate issues such as belt rips or material buildup.

  • Blockage Detection: Identifying material build-up that could obstruct the conveyor system is essential for maintaining smooth operations. Sensors designed to detect blockages or abnormal product profiles on the conveyor belt ensure that any material accumulation is addressed promptly, preventing potential disruptions.


Implementing a Robust Conveyor Belt Monitoring System


Implementing a robust conveyor belt monitoring system is crucial for enhancing the efficiency and reliability of conveyor operations. Ensuring seamless integration and minimal maintenance are key factors in the successful deployment of these systems.


Ease of Integration


Implementing a robust conveyor belt monitoring system is essential for maximising the efficiency and reliability of conveyor operations. A key consideration in this implementation is the ease of integration with existing infrastructure. Modern monitoring systems, such as BRaiDS, are designed to seamlessly integrate with current conveyor belt systems without the need for significant modifications. This means that industries can upgrade their monitoring capabilities without the hassle of extensive retrofitting or downtime.


The advantage of systems that do not require belt retrofitting cannot be overstated. Retrofitting often involves substantial labour, time and cost, which can disrupt production schedules and reduce operational efficiency. By choosing monitoring solutions that integrate smoothly with existing setups, companies can avoid these disruptions. This seamless integration allows for a quicker deployment and immediate benefits, enhancing the overall productivity of the conveyor belt system.


Minimal Ongoing Maintenance


One of the standout benefits of advanced monitoring systems is their minimal ongoing maintenance requirements. Traditional conveyor belt monitoring systems often necessitate frequent maintenance checks and adjustments, placing a significant strain on maintenance teams. However, modern sensor technologies are designed for durability and reliability, reducing the need for regular intervention.


Durable sensor technology is built to withstand harsh industrial environments, ensuring long-term performance without frequent replacements or repairs. This robustness means that maintenance teams can allocate their resources more efficiently, focusing on critical areas rather than routine checks. The reduction in maintenance demands not only decreases labour costs but also minimises operational disruptions, contributing to a smoother and more efficient production process.


Non-Destructive Condition Monitoring


Non-destructive condition monitoring is another critical feature of advanced conveyor belt monitoring systems. Traditional monitoring methods often involve invasive procedures that can damage the conveyor belt, leading to additional maintenance and repair costs. In contrast, non-destructive monitoring techniques provide continuous insights into the belt’s condition without compromising its integrity.


Non-destructive condition monitoring methods utilise advanced sensor technologies to gather data on various parameters, such as belt alignment and surface wear. These sensors operate without making direct contact with the belt, ensuring that the monitoring process does not interfere with the belt’s normal operation. This approach not only preserves the belt’s longevity but also provides real-time data that can be used for proactive maintenance planning.


Maintaining conveyor belt integrity while monitoring its condition offers numerous benefits. It ensures that the belt remains in optimal working condition, reducing the risk of unexpected failures and extending its lifespan. Furthermore, the continuous data provided by non-destructive monitoring allows for a deeper understanding of the belt’s performance, enabling more accurate predictive maintenance strategies.

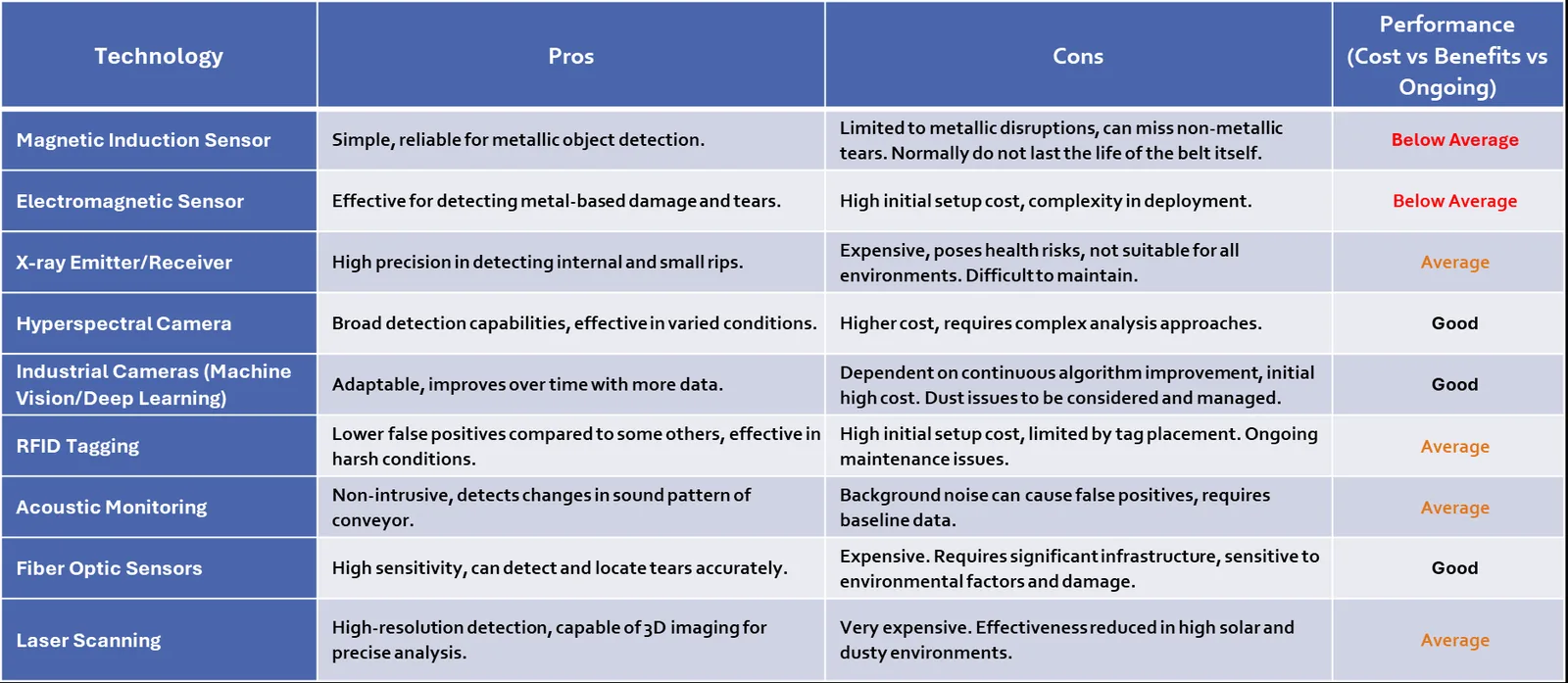

Pros and Cons of Traditional Conveyor Belt Monitoring Systems - Miniotec
Pros and Cons of Traditional Conveyor Belt Monitoring Systems

Understanding BRaiDS and Its Unique Advantages in Conveyor Belt Monitoring


Within advanced conveyor belt monitoring, BRaiDS stands out with its innovative approach and advanced technology. This section delves into the unique features and benefits that BRaiDS offers, setting it apart from traditional methods.


What is BRaiDS?


BRaiDS is a state-of-the-art industrial IoT solution designed to transform conveyor belt monitoring. By leveraging advanced sensor technologies and coupling this with real-time anomaly detection and predictive maintenance, BRaiDS enhances the reliability, safety and efficiency of conveyor systems. This innovative system provides comprehensive monitoring, ensuring the longevity and optimal performance of conveyor belts across various industries, including mining and manufacturing.


How BRaiDS Differentiates from Traditional Approaches


One of the standout features of BRaiDS is its elimination of embedded loops or antennae, common in traditional conveyor monitoring systems. These traditional methods can be notoriously troublesome due to their susceptibility to damage and the complexity of installation. BRaiDS enhances reliability and simplifies installation by being able to retrofit to existing conveyors without the need for major modifications. This design choice ensures versatility, allowing BRaiDS to monitor any speed or product, and adapt to any belt width or length, which is crucial for industries with diverse operational needs.


BRaiDS uses a comprehensive array of advanced sensor technologies, combined with advanced analytics, to provide real-time anomaly detection and predictive maintenance. This proactive approach mitigates issues before they escalate, reducing unplanned downtime and maintenance costs. Additionally, BRaiDS employs non-destructive monitoring methods, ensuring that the integrity of the conveyor belt is maintained while continuously assessing its condition. This approach not only preserves the belt but also provides continuous, accurate data for better decision-making.


Addressing Critical Challenges with BRaiDS


Belt Mistracking


Belt mistracking is a common issue in conveyor systems, where the belt veers off its intended path, causing significant edge damage and operational inefficiencies. BRaiDS addresses this by continuously monitoring belt alignment at the transfer chute location, identifying misalignments caused by off-center belt loading and debris accumulation. Early detection allows for prompt corrective actions, maintaining system efficiency and reducing wear and tear.


Impact Damage


Impact damage is a major concern in areas where large or sharp materials strike the conveyor belt, such as loading zones or under crushers. BRaiDS detects impact damage early, allowing for immediate interventions. Factors contributing to impact damage, such as large lumps of material, long drops without impact absorption systems, and the inclusion of metallic debris like blast rods and metal stakes, are continuously monitored to ensure any belt damage, such as belt rips, are detected early. This proactive approach ensures the longevity of the belt and minimises maintenance costs.


Abrasive Material Wear


Conveyor belts transporting abrasive materials, like iron ore, are prone to wear over time. BRaiDS monitors the belt surface for signs of abrasive wear, which can be exacerbated by misplaced materials and carryback build-up. By providing real-time data on belt condition, BRaiDS helps operators schedule maintenance before wear leads to significant damage, thereby extending the lifespan of the belt.


The Role of BRaiDS in Anomaly Detection


BRaiDS excels in real-time anomaly detection, identifying issues like belt rips, mistracking and mechanical failures as they occur. This immediate detection minimises unplanned downtime and operational disruptions. Additionally, the system's predictive maintenance capabilities leverage AI and ML algorithms to identify potential failures based on historical and real-time data. This proactive approach extends the lifespan of conveyor belts and reduces maintenance costs.


The comprehensive array of sensor technologies within BRaiDS continuously monitor belt alignment to prevent mistracking, early detection of mechanical issues through vibration analysis, and a holistic assessment of environmental conditions affecting the belt. Additionally, BRaiDS detects anomalies through sound pattern analysis, ensuring comprehensive coverage of potential issues.


Ease of Implementation and Minimal Maintenance


One of the significant advantages of BRaiDS is its ease of integration with existing infrastructure. Designed to be retrofitted to current systems without requiring belt modifications, BRaiDS simplifies the installation process. The durable sensor technology used in BRaiDS requires minimal regular maintenance, reducing the resource strain on maintenance teams and ensuring long-term reliability and operational efficiency.


Future-Proofing Conveyor Belt Monitoring with BRaiDS


BRaiDS is designed with scalability and adaptability in mind, making it suitable for various operational environments. Advances in AI and ML continue to enhance the predictive capabilities of BRaiDS, allowing for more accurate predictions and improved maintenance strategies. By future-proofing conveyor belt monitoring systems, BRaiDS ensures that industries can adapt to evolving technologies and operational demands, maintaining optimal performance and reliability.


Conclusion


Effective conveyor belt monitoring is crucial for maintaining operational efficiency and minimising downtime in industrial operations. Conveyor systems, especially in sectors like mining and manufacturing, are essential for the continuous movement of materials, and any disruption can lead to significant losses - time and money. Advanced monitoring technologies, such as those offered by BRaiDS, play a pivotal role in enhancing the reliability, safety and efficiency of these systems.

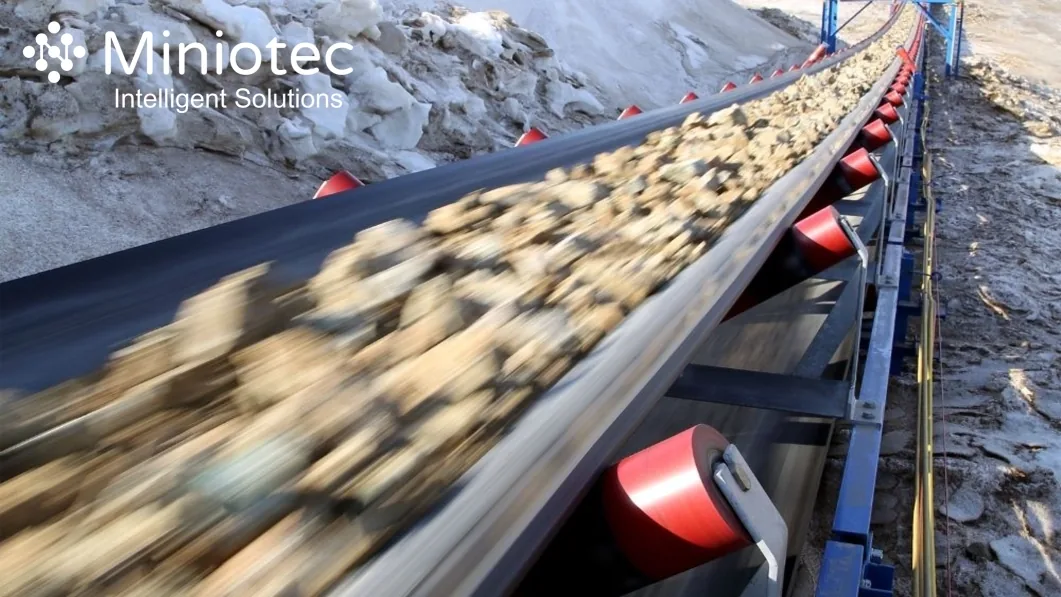

Conveyor belts transporting abrasive materials, like iron ore, are prone to wear over time. - Miniotec
Conveyor belts transporting abrasive materials, like iron ore, are prone to wear over time.

By addressing common challenges such as belt mistracking, impact damage and abrasive material wear, BRaiDS provides a comprehensive solution that ensures the longevity and optimal performance of conveyor belts. Real-time anomaly detection and predictive maintenance are key features of BRaiDS, enabling early identification of issues and proactive intervention. This not only reduces maintenance costs but also extends the lifespan of the conveyor belts, ensuring consistent and reliable operations.


Furthermore, the ease of integration and minimal ongoing maintenance required by BRaiDS make it a practical choice for industries looking to upgrade their conveyor monitoring systems without significant disruptions. The non-destructive monitoring methods employed by BRaiDS ensure that the integrity of the conveyor belt is maintained while providing continuous, accurate data for better decision-making.


As advancements in AI and Machine Learning continue to shape the future of conveyor belt monitoring, systems like BRaiDS will become even more effective in identifying potential failures and optimising maintenance strategies. The scalability and adaptability of BRaiDS ensure that it can meet the evolving needs of various operational environments, making it a future-proof investment for industries committed to maintaining high levels of efficiency and reliability.


Advanced monitoring technologies such as BRaiDS are essential for enhancing asset management in industrial operations. By providing real-time insights and predictive maintenance capabilities, these systems ensure the optimal performance and longevity of conveyor belts, ultimately contributing to the overall productivity and profitability of industrial operations.


We welcome your insights and experiences.


Stay safe.


Best;



Special thanks to Tony Nitchov for his contributions to this article.
