Predictive Maintenance Technologies: Leveraging the Power of Data-Driven Asset Management

How the Top 3 Predictive Maintenance Technologies are Transforming Operations through Proactive Strategies.

Will you be at the forefront of maintenance transformation, leveraging predictive technologies to gain a strategic advantage? Or will you cling to antiquated maintenance routines and risk being left behind? The choice is yours - Miniotec
Will you be at the forefront of maintenance transformation, leveraging predictive technologies to gain a strategic advantage? Or will you cling to antiquated maintenance routines and risk being left behind? The choice is yours.


In the realm of asset management, predictive maintenance stands as a pinnacle of innovation, representing the union of technology and foresight. This proactive approach harnesses the power of data and analytics to predict equipment failures before they occur, enabling timely maintenance interventions. At the heart of predictive maintenance lie three (3) key technologies: vibration analysis, acoustic analysis and oil analysis. Each plays a pivotal role in detecting the indications of equipment failure, far ahead of the inevitable.

The selection of these technologies is not arbitrary; it is profoundly rooted in the predictive maintenance (PdM) doctrine, as illustrated by the P-F curve—a foundational concept in reliability engineering. The P-F curve delineates the timeline between the initial detection of a potential failure (P) and the point of functional failure (F), where equipment performance is compromised.

The goal of the P-F curve is to intercept and rectify anomalies during the earliest window of opportunity, effectively forestalling unscheduled downtimes that can ripple through the operations with costly repercussions.

Vibration analysis, with its precise detection of unusual patterns, is a forerunner in the predictive techniques arsenal. It can reveal the earliest signs of wear, unbalance or misalignment in rotating machinery. Acoustic analysis complements this by picking up subtle noise anomalies, often ultrasonic, that escape human detection. Lastly, oil analysis provides a deep dive into equipment health through the lens of lubricant condition, identifying contaminants and chemical imbalances indicative of underlying issues. Together, these technologies form a triad that not only signals impending equipment failures but also ushers in an era of data-driven maintenance strategies. It is this prescient capability that is pivotal for industries aiming to minimise downtime and maximise asset longevity.

In a world where operational efficiency is synonymous with competitive advantage, the adoption of predictive maintenance is rapidly accelerating. It's a transformative journey from the reactive past to a predictive future, where every decision is informed by actionable data, and every maintenance action is a strategic step towards operational excellence. This article delves into the essence of predictive maintenance, exploring its methodologies, benefits and the technologies that propel it to the forefront of asset management. It's a pathway not just to prevent failure but to predict and pre-empt it, ensuring that every digital step taken is a stride towards reliability and resilience.

What is Predictive Maintenance (PdM)?

Predictive maintenance (PdM) is an advanced approach to maintenance that utilises data analysis tools and techniques to detect anomalies in equipment operation and potential defects before they result in failure. This method relies on the strategic use of data and sophisticated analytics to forecast maintenance needs, thereby pre-empting equipment breakdowns and ensuring that maintenance is only performed when warranted.

Read more about Predictive Maintenance here.

The Pillars of Predictive Maintenance

The Pillars of Predictive Maintenance are foundational elements that guide the strategic implementation of this data-driven approach, ensuring that it stands strong to improve the traditional methods of equipment management.

Understanding the PF Curve

The PF Curve stands as the bible of predictive maintenance. It is a graphical representation of the time span between the first sign of a potential failure (P) and the point where the equipment no longer performs its intended function (F). The curve is crucial for understanding how predictive maintenance can forestall the progression from potential failure to actual downtime. By identifying the initial symptoms of failure, PdM allows maintenance teams to intervene promptly, well before functional failure occurs, thereby averting operational disruptions.

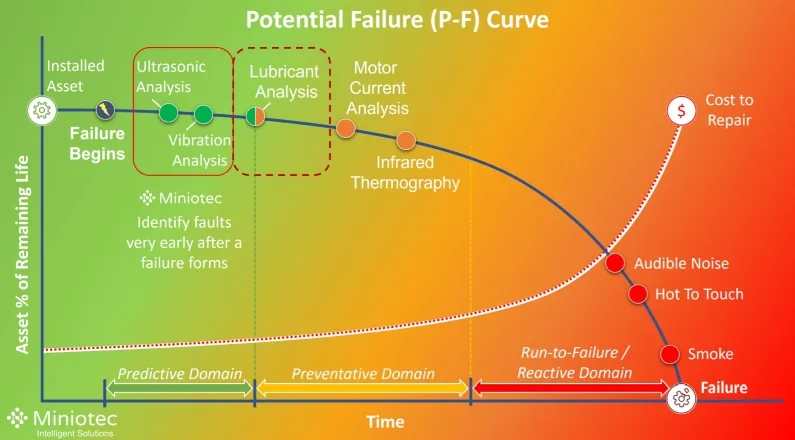

The goal of the P-F curve is to intercept and rectify anomalies during the earliest window of opportunity - Miniotec
The goal of the P-F curve is to intercept and rectify anomalies during the earliest window of opportunity.

Benefits of PDM

The adoption of predictive maintenance offers a multitude of benefits, chief among them the ability to significantly reduce downtime and extend the life expectancy of equipment. By proactively addressing issues, organisations can avoid the costs associated with unplanned outages and emergency repairs. Furthermore, PdM promotes efficient use of resources, as maintenance activities are scheduled based on actual equipment conditions, thus optimising labour and replacement parts usage.

Key Terminologies and Concepts

Understanding PdM requires familiarity with its key terminologies and concepts:

  • Condition Monitoring: The continuous or periodic measurement and interpretation of data to identify significant changes indicative of equipment health.

  • Fault Diagnostics: The process of identifying the root cause of a fault within a piece of equipment.

  • Predictive Analytics: The utilisation of data, statistical algorithms and machine learning techniques to identify the likelihood of future outcomes based on historical data.

  • Machine Learning in PdM: Employing algorithms to learn from data, identify patterns and make decisions with minimal human intervention.

Armed with a robust predictive maintenance program, organisations are positioned to leverage the transformative power of data to not only predict what could happen but also to prescribe preventative measures, ensuring that each asset's health is diligently monitored and maintained.

Why Shift from Preventive to Predictive Maintenance?

The industrial sector is witnessing a paradigm shift from the traditional approach of preventive maintenance to the more advanced, data-driven predictive maintenance (PdM). This transition is driven by the pursuit of increased efficiency, reduced downtime and optimised resource utilisation.

The Limitations of Preventive Maintenance

Preventive maintenance (or equally called preventative maintenance), with its traditional time-based scheduling, often falls short in today's dynamic operational environments, leading to inefficiencies and overlooked risks. The inherent limitations of this once-standard maintenance strategy include:

a) Scheduled Downtimes

Preventive maintenance, while methodical, adheres to a fixed schedule regardless of actual equipment condition. This approach can inadvertently lead to unnecessary downtimes for maintenance activities, even when equipment is functioning optimally, causing avoidable disruptions in operations.

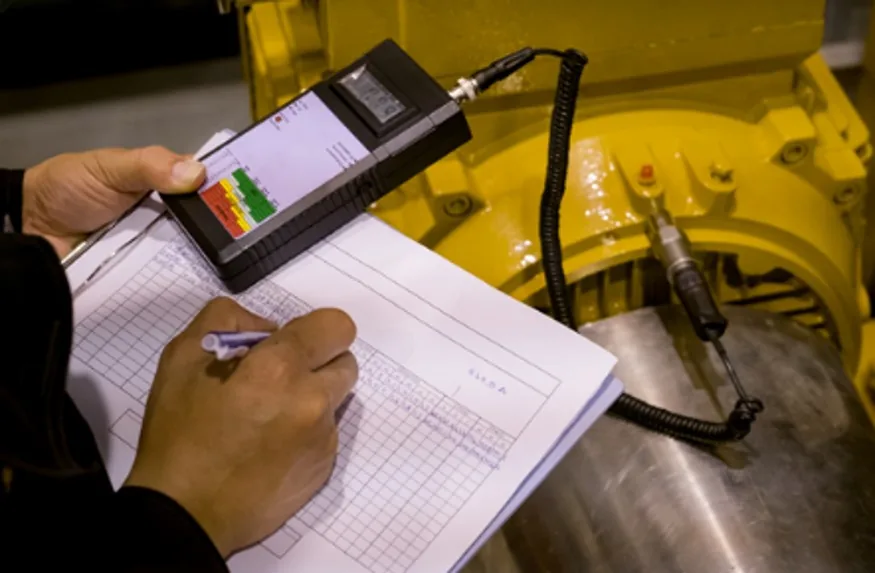

Traditional Preventative Maintenance Inspections impose an unnecessary drain on human resources - Miniotec
Traditional Preventative Maintenance Inspections impose an unnecessary drain on human resources.

b) Wasted Resources

The rigid adherence to a maintenance calendar, without considering the real-time condition of the equipment, can lead to misallocated resources. Maintenance efforts might be expended on assets that are not yet due for servicing, leading to inefficiencies and inflated operational costs.

c) Potential Overlook of Impending Failures

Preventive maintenance is often based on historical data and predetermined schedules, which may not always be indicative of the current state of the machinery. This can result in the oversight of early warning signs of equipment failure, which if detected early, could prevent more severe consequences.

The Strengths of Predictive Maintenance

Predictive Maintenance (PdM) continues to transform the maintenance landscape, harnessing data analytics to enhance decision-making, minimise downtime, optimise resource allocation and improve asset longevity. The intrinsic strengths of this progressive maintenance approach include:

a) Data-Driven Decisions

Predictive maintenance utilises real-time data from IIoT sensors and advanced analytics to accurately predict when equipment might fail. This enables maintenance teams to make informed decisions and undertake timely interventions, effectively preventing equipment failure.

b) Reduced Downtimes

By proactively identifying and resolving potential issues before they escalate, PdM significantly diminishes the likelihood and impact of unplanned downtimes. This proactive approach ensures that operations run smoothly with minimal interruptions.

c) Optimised Resource Allocation

Predictive maintenance ensures that resources are allocated more efficiently. Maintenance activities are prioritised and scheduled based on the actual condition of the equipment, effectively enabling the 'equipment to talk' about their health state, which is continuously assessed through condition monitoring, rather than a pre-set maintenance timetable.

d) Enhanced Asset Life

The early detection and rectification of issues that predictive maintenance affords can substantially extend the service life of machinery. By addressing wear and tear promptly, the frequency of costly replacements and overhauls is considerably reduced.

Cost Implications

While the initial outlay for predictive maintenance—encompassing the cost of sensors, analytics software and the requisite training—may exceed that of traditional preventive maintenance, the medium to long-term financial benefits are undeniable. The strategic investment in PdM can yield substantial savings by curbing downtimes, averting catastrophic failures and ensuring resources are utilised where they are most needed, ultimately providing a compelling return on investment.

The shift towards predictive maintenance is a reflection of an industry that increasingly values data over intuition and strategic foresight over scheduled routines. It is an investment in the longevity and reliability of assets, and in the continuous improvement of maintenance processes.

Understanding the Role of Sensors in Predictive Maintenance (PdM)

The Backbone of Predictive Maintenance: IIoT Sensors

In the orchestration of predictive maintenance, technology plays the role of both maestro and instrumentalist, with Industrial Internet of Things (IIoT) sensors serving as the backbone of this symphony. These sensors are the critical components that gather the data necessary for the advanced analytics which drive PdM strategies.

Harnessing Data with IIoT

IIoT sensors are adept at continuously monitoring an array of conditions such as temperature, vibration and acoustics. They are the sentinels of the industrial world, vigilantly tracking the health and performance of equipment. This real-time data is the lifeblood of predictive maintenance, feeding into diagnostic algorithms that can detect the faintest whispers of an impending failure.

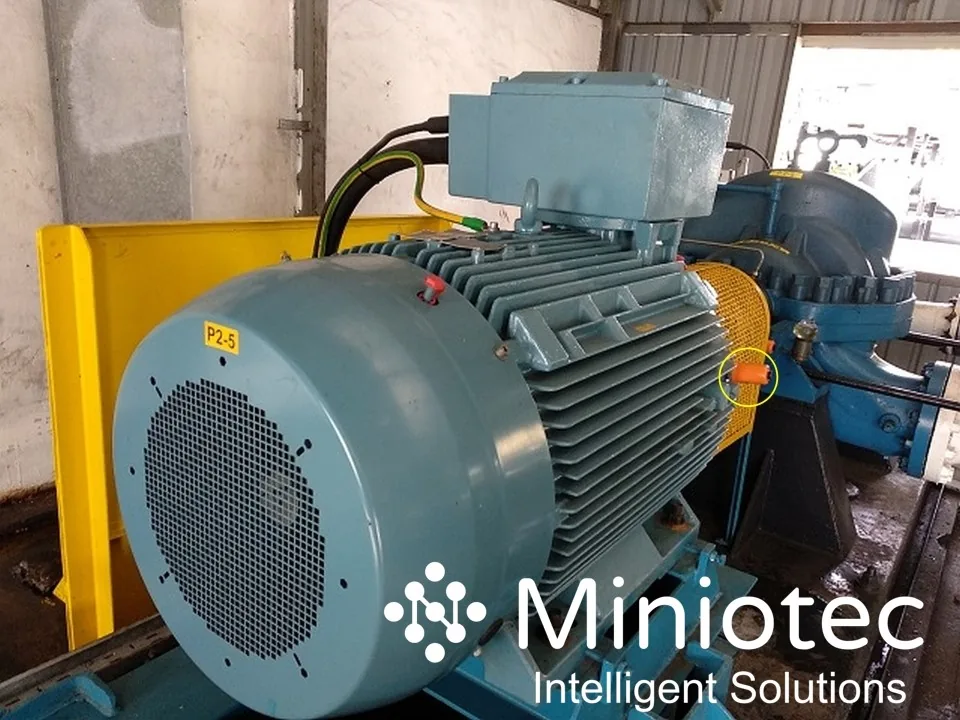

Critical equipment health data flowing in minutes of installation. The analytical benefits of IIoT sensors is significant - Miniotec
Critical equipment health data flowing in minutes of installation. The analytical benefits of IIoT sensors is significant.

The Role of Sensors in Early Detection

The early detection of potential equipment issues is where IIoT sensors truly shine. They can identify subtle changes that may indicate a problem, long before it becomes evident through traditional monitoring methods. By converting the physical properties of machinery into digital data, these sensors enable a level of analysis and insight that was previously unattainable.

Analytics and Sensor Data

The data harvested by IIoT sensors is the foundation upon which predictive models are built. Advanced analytics software sifts through this data, employing machine learning algorithms to predict trends and identify anomalies. The integration of sensor data with predictive analytics allows for the crafting of maintenance schedules that are precisely timed and targeted, ensuring interventions are as effective and efficient as possible.

The Strategic Advantage

The strategic deployment of IIoT sensors in predictive maintenance programmes offers a significant competitive advantage, particularly in-place of fixed wired sensors. This technology enables a move away from reactive or calendar-based maintenance approaches, towards a regime where decisions are informed by the actual condition of assets. As a result, maintenance becomes a strategic operation, aligned with the overarching goals of reducing downtime, extending equipment life and optimising resource allocation.

The use of sensors in predictive maintenance is a testament to the transformative power of technology in industrial operations. By tapping into the rich stream of data provided by IIoT sensors, businesses can unlock unprecedented levels of operational efficiency and asset optimisation.

Elevate your asset management and optimise your operations: take our online IIoT opportunity evaluation today for actionable insights.

The Reliability Benefits of Vibration Analysis

Understanding Vibration Analysis

Vibration analysis is a cornerstone technique in the predictive maintenance toolbox, critically acclaimed for its ability to detect machinery malfunctions before they escalate into failures. This method capitalises on the vibrations emitted by machinery, which are indicative of their condition. By deploying Industrial IoT (IIoT) wireless vibration sensors, these subtle vibrations are captured and analysed in real-time, offering a wealth of information about the inner workings of machinery.

These sensors are the vanguard of vibration analysis, offering several advantages over traditional wired systems. They are easier to install and more flexible in terms of positioning, allowing for comprehensive coverage of machinery, even in complex, hard to reach or hazardous environments. IoT wireless sensors also facilitate remote condition monitoring, making it possible to receive immediate alerts and insights regardless of the observer's location.

Key Benefits and Applications

The adoption of vibration analysis spans numerous industries, each benefiting from its predictive capabilities. In mining, sensors detect imbalances in heavy machinery, averting catastrophic failures that could halt production. The oil and gas sector utilises vibration analysis to monitor pumps and motors, ensuring optimal performance and safety. In energy production, early detection of vibration anomalies in turbines can prevent outages, while manufacturers use this technology to maintain the health of their production lines, ensuring consistent quality and throughput.

The construction of modern buildings, especially those with complex mechanical systems like cooling equipment and HVAC units, also relies on vibration analysis for maintenance. It ensures these critical systems remain operational, providing comfort and safety to occupants.

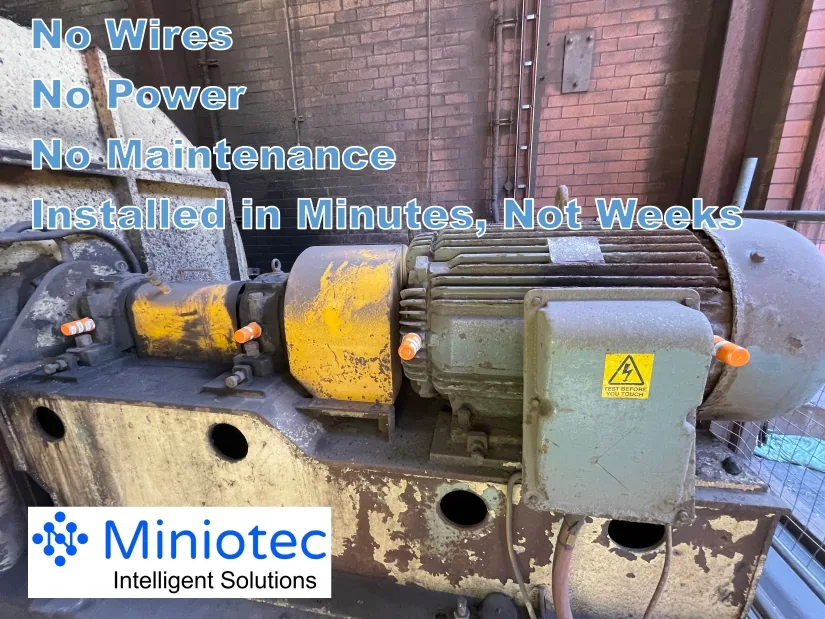

Monitoring equipment 24/7 and enabling your equipment to talk is the key benefit of IIoT and Predictive Maintenance - Miniotec
Monitoring equipment 24/7 and enabling your equipment to talk is the key benefit of IIoT and Predictive Maintenance.

Tools and Equipment for Vibration Analysis

The toolkit for vibration analysis includes a variety of sophisticated devices. Principal among these are the IIoT wireless vibration sensors, which serve as the primary data collection points. Accompanying these sensors are data analysers and diagnostic software, which interpret the collected vibration data to pinpoint potential issues. Additionally, portable data collectors and analysers allow maintenance teams to conduct spot checks and verify sensor readings.

Curious to learn what a best-in-class vibration sensor considers? We discuss this very topic in this article.

Balancing instruments and laser alignment tools are often used in conjunction with vibration analysis to correct identified imbalances in machinery. These tools ensure precision in maintenance tasks, leading to reduced wear and tear and thereby extending the lifespan of the equipment.

Through vibration analysis, companies are empowered with a proactive approach to maintenance, one that ensures reliability, optimises performance, and ultimately, enhances the bottom line. It’s an investment in operational foresight, where every vibration tells a story of what the future holds for the machinery at hand.

Listening to Your Assets Via Acoustic Monitoring

Deciphering Acoustic Analysis

Acoustic analysis, specifically through the lens of ultrasonic monitoring, has emerged as a pivotal facet of predictive maintenance. This technique listens for high-frequency sounds produced by equipment, which are often indicators of mechanical issues such as leaks, electrical discharges or friction. In the domain of low-speed machinery, where vibration analysis might not be as effective, acoustic monitoring through IoT sensors plays a critical role. These sensors can detect subtle changes in noise levels, identifying potential problems that are imperceptible to the human ear.

To further highlight acoustic's advantages, by concurrently monitoring acoustic emissions, vibration and temperature data, it is possible to distinguish genuine equipment faults from normal fluctuations in speed and load. Acoustic data is particularly revealing; a significant rise in acoustic levels, monitored at frequent intervals, typically indicates an issue beyond ordinary process variation. This is because acoustic levels will only escalate due to surface-to-surface contact, which serves as a reliable early warning sign of potential faults in the making.

The utilisation of IoT technology in acoustic monitoring enables a seamless and continuous capture of data, ensuring that even the most transient noises are recorded and analysed. This is particularly beneficial for equipment that operates intermittently or at variable speeds, as it provides a more consistent and reliable monitoring solution compared to periodic manual checks.

Advantages and Use Cases

Acoustic monitoring's primary advantage is its sensitivity to early signs of wear or failure. It is invaluable in scenarios where preventive measures are critical, such as in the detection of gas or air leaks within pressurised systems or metal-to-metal contact in motor bearings. Moreover, its non-intrusive nature allows for assessments to be conducted without disrupting the normal operation of machinery.

The utility of acoustic analysis spans several industries, serving a vital role in the predictive maintenance strategies of sectors like aerospace, where engine noise levels are indicative of performance and safety. Similarly, in the energy sector, electrical transformer 'hums' can signal the need for maintenance before a costly failure occurs.

Essential Tools for Acoustic Analysis

To implement an effective acoustic monitoring system, certain tools are indispensable. Ultrasonic detectors equipped with IoT capabilities form the crux of the setup, empowered to relay data to centralised monitoring systems. Complementing these are sound level meters and spectrum analysers, which aid in the characterisation and diagnosis of the recorded sounds. Moreover, specialised software is employed to analyse acoustic data, offering insights and alerts that inform maintenance decisions.

In essence, acoustic analysis, particularly through IIoT-based sensors, allows for a proactive maintenance approach, where the sounds of machinery become a diagnostic language, spoken and understood through advanced technology. By listening intently, organisations can maintain the symphony of productivity, harmony and safety in their operational assets.

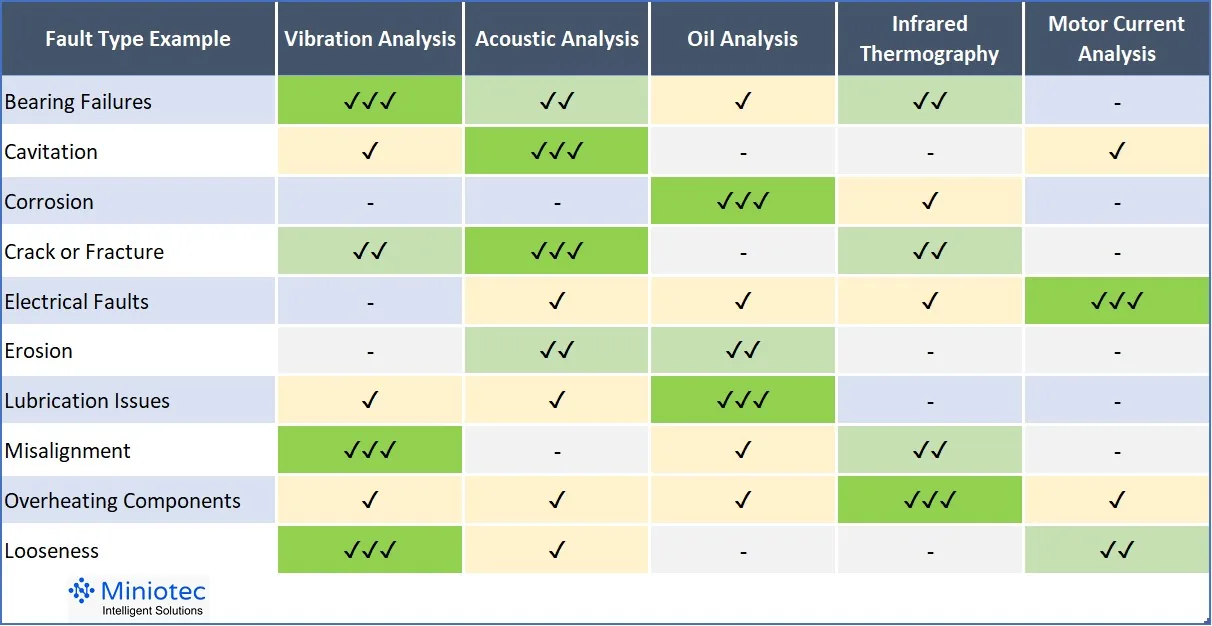

Table comparing five predictive maintenance technologies — Vibration Analysis, Acoustic Analysis, Oil Analysis, Infrared Thermography, and Motor Current Analysis — against ten different fault types. - Miniotec
Table comparing five predictive maintenance technologies — Vibration Analysis, Acoustic Analysis, Oil Analysis, Infrared Thermography and Motor Current Analysis — against ten different fault types.

Oil Analysis: A Deeper Dive

Exploring Oil Analysis

Oil analysis is a sophisticated technique that scrutinises the health of machinery through the condition of its fluid and lubricants. It's a critical component of predictive maintenance, particularly for both ferrous and non-ferrous applications, where the presence of wear particles in the oil and lubrication circuit can be an early indicator of equipment degradation.

Sensors that use Electro-chemical Impedance Spectroscopy (EIS) stand out as a leading technology for fluid quality analysis. This method measures the impedance of oil, providing insights into contamination, additive depletion and the presence of degradation products. EIS sensors offer an unparalleled depth of analysis, making them an asset for any predictive maintenance regime.

The Pros and Industry Applications

The benefits of oil analysis are manifold. It allows for the detection of issues such as abnormal wear, contamination, and oil degradation, which can prevent costly repairs and downtime. In industries where machinery is capital-intensive and downtime is particularly disruptive, such as mining, transportation, and heavy manufacturing, oil analysis is invaluable.

Whilst not trying to duplicate laboratory derived results, by providing real time analysis whilst the equipment is still operational, oil sensors can continuously monitor fluid performance and wear debris generation.

It also plays a significant role in energy sectors, where turbines and generators depend on the integrity of their lubricants for efficient operation. In automotive applications, oil analysis ensures the longevity and reliability of engines, which is crucial for both performance and safety.

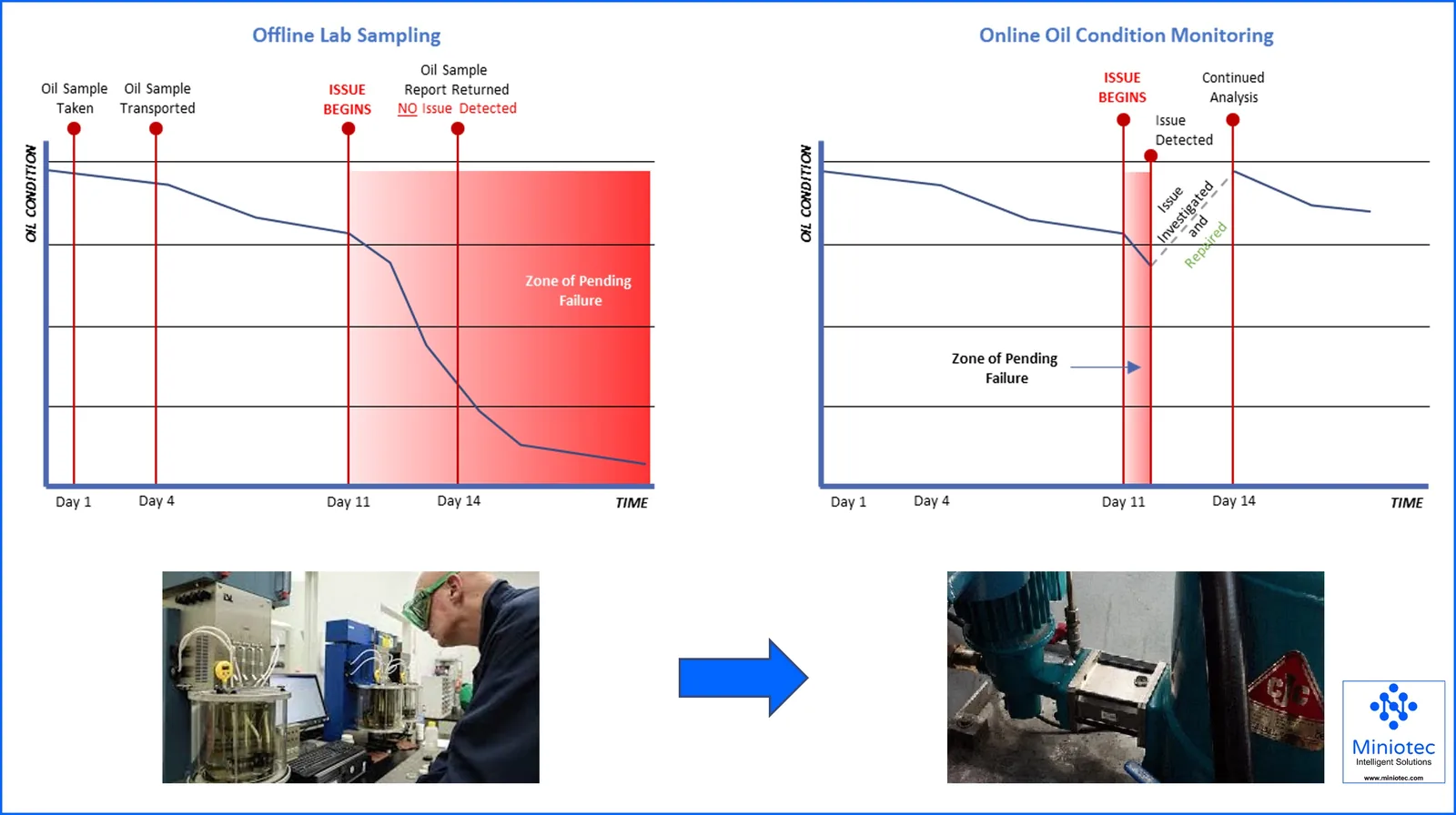

Moving from Manual Oil Sampling to Real Time In-Situ Sensor Analysis - Miniotec
Moving from Manual Oil Sampling to Real Time In-Situ Sensor Analysis

Required Tools and Equipment

In the transition towards a more sophisticated predictive maintenance strategy, the integration of Industrial Internet of Things (IIoT) sensors marks a significant shift from traditional preventative methodologies. Instead of relying on oil sampling kits, which demand manual collection and are susceptible to contamination and trying to effectively find 'a needle in haystack', the focus is now on deploying advanced in-line fluid sensing technologies. These cutting-edge sensors directly interface with the lubrication system, continuously tracking the presence of metallic wear debris and scrutinising the lubricant’s vital properties, such as viscosity, water contamination and electro-chemical characteristics.

These IIoT sensors operate tirelessly, providing an uninterrupted flow of technical data on the oil’s condition while the machinery is active. This contrasts sharply with the older practice of sending samples to external laboratories and awaiting results—a process that could take weeks and potentially leave equipment vulnerable to undetected faults. By offering real-time analysis, IIoT sensors allow for the earliest detection of issues, facilitating immediate and informed decisions that can drastically reduce downtime and maintenance costs. The capability to monitor and respond to changes instantaneously elevates these sensors as a cornerstone in modern asset management, reducing the need for traditional tools such as spectrometers, ferrography devices and flash point testers, redefining the landscape of machine health monitoring.

The Interplay with Infrared Thermography and Motor Current Analysis

Infrared Thermography in Supporting Predictive Maintenance

Infrared thermography is a technique that measures thermal emissions to identify changes in temperature indicative of potential failures. While primarily used as a preventative tool, it can complement predictive maintenance strategies by providing support on issues such as overheating, poor electrical connections and insulation breakdowns. The ability to visually capture detailed temperature anomalies in equipment allows maintenance teams to target their efforts more precisely, effectively addressing issues before they lead to equipment failure.

Motor Current Analysis

Motor Current Analysis (MCA) is another preventative tool that has found its place supporting the predictive maintenance framework. By analysing the electrical currents in motors, MCA can detect irregularities that may signal impending issues. This is particularly useful in applications like submersible pumps, where direct inspection is challenging or installing IIoT sensors is not possible. MCA can help identify problems such as rotor bar degradation, air gap non-uniformity and power quality issues, facilitating timely maintenance actions.

In the predictive maintenance ensemble, Infrared Thermography and Motor Current Analysis offer a unique analytical lens, supporting corroborative insights where traditional predictive techniques call for additional information.

Synergy with Core Predictive Technologies

Both infrared thermography and motor current analysis, while more of a preventative maintenance strategy, play a supportive role alongside core predictive technologies like vibration, acoustic and oil analysis. According to the P-F curve, these technologies fall slightly further down the timeline, closer to the point of functional failure, hence their categorisation as more preventative. However, when integrated into a comprehensive maintenance strategy, they support a more complete picture of equipment health.

For instance, while vibration analysis might detect an imbalance in a motor, motor current analysis might reveal electrical imbalances contributing to the problem. Together, these technologies create a multi-faceted approach to maintenance that is both proactive and predictive, ensuring that interventions are timely, targeted and effective. This interplay is essential for extending the life of assets and improving overall reliability.

Challenges of Predictive Maintenance

Implementing a predictive maintenance program should be viewed as a strategic initiative. Predictive maintenance (PdM) represents a significant advancement in asset management, but its implementation is not without its hurdles. Addressing these challenges is crucial for businesses to truly harness the power of PdM.

a) Navigating Data Management in PdM

The efficacy of predictive maintenance is heavily reliant on data quality and handling. With the vast amounts of data generated by sensors and equipment, it can be daunting to collect, organise and analyse this information effectively. This process requires not just robust systems capable of handling big data but also a workforce open to learning new technologies. The challenge is intensified by the need for real-time processing to facilitate immediate maintenance actions.

b) Integration with Legacy Systems

Another obstacle is the integration of modern PdM tools with existing legacy systems, particularly within the manufacturing sector. These older systems often form the backbone of operations and are not readily compatible with the latest predictive technologies. Retrofitting such systems or transitioning to newer platforms involves considerable expense and complexity, potentially disrupting established workflows.

c) Choosing the Right Technologies

Selecting the ideal Predictive Maintenance (PdM) technology is critical to both the effectiveness of the maintenance strategy and the financial bottom line. IIoT solutions, as offered by Miniotec, encompass comprehensive data collection, analysis and reporting capabilities. These solutions not only ensure a seamless PdM journey but also maximise return on investment. Such integrated systems simplify the process, allowing businesses to embark on their PdM journey with greater ease and confidence, tailoring maintenance needs precisely to their operational demands and delivering measurable value.

d) Resistance to New Approaches

The transition from well-entrenched preventive or reactive maintenance to a proactive PdM approach can meet with resistance. Such practices are ingrained in the culture and operations of many organisations, and shifting to a new methodology requires a change in mindset at all levels of the company. Effective change management strategies are vital to overcome this resistance and ensure buy-in from stakeholders.

e) Demonstrating Value

Demonstrating the value of predictive maintenance can also be a challenge. The benefits, primarily in the form of failures prevented, are not always immediately apparent. While PdM can lead to medium to long-term savings by reducing downtime and maintenance costs, the initial investment required for sensors, systems and training can be considerable. Moreover, return on investment (ROI) should not be viewed solely in terms of labour cost savings but also in the enhanced reliability and longevity of assets.

The path to a successful PdM program is fraught with challenges that can seem daunting. However, by acknowledging and strategically addressing these issues, businesses can position themselves to reap the full benefits of predictive maintenance. This involves investing in the right technologies, fostering a culture of continuous learning and demonstrating the long-term value of a proactive maintenance strategy. With these efforts, the promise of PdM — improved reliability, reduced costs and enhanced operational efficiency — can be fully realised.

Pulling it All Together: Implementing a PdM Philosophy

Integrating Predictive Maintenance into the modern industrial strategy necessitates a comprehensive approach, bridging the gap between advanced technology and everyday operational practices. Implementing a robust PdM philosophy effectively considers:

a) Coordinated Maintenance Strategy

To maximise the efficacy of Predictive Maintenance (PdM), it's essential to establish a coordinated strategy. This approach should detail the specific methodologies to be employed in various scenarios. It involves analysing the current maintenance operations and aligning them with the core objectives of PdM: to anticipate potential failures and mitigate downtime. The strategy must be clear-cut, accessible to all stakeholders and flexible enough to adapt to the evolving dynamics of operational environments.

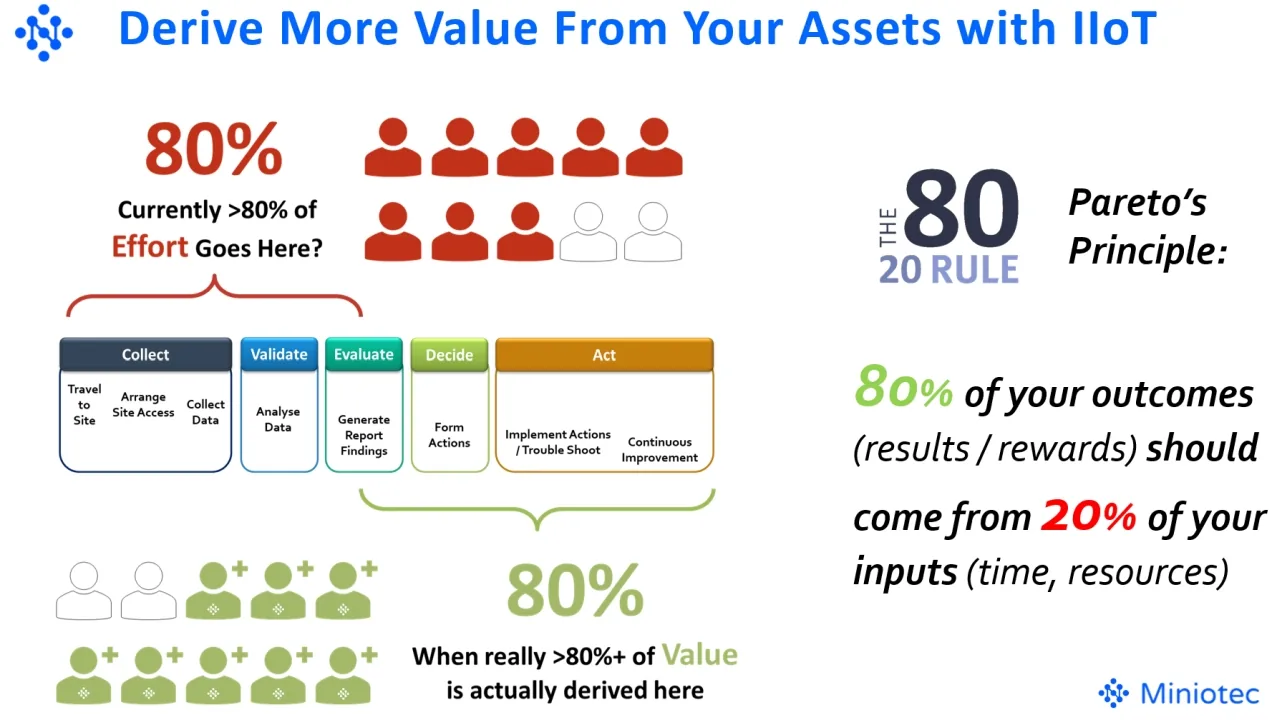

PdM Strategies Combined with IIoT Allow You to Derive More Value from Operating Your Assets. Move Away from Mundane Tasks to More Value Adding  Activities - Miniotec
PdM Strategies Combined with IIoT Allow You to Derive More Value from Operating Your Assets. Move Away from Mundane Tasks to More Value Adding Activities.

b) Asset Identification for PdM

The initial step in executing a PdM strategy is to categorise assets based on their criticality and the likelihood of failure. Assets that are 'Balance of Plant' (BoP) to operations and have a history of frequent breakdowns are prime candidates for predictive maintenance. This categorisation ensures a targeted approach, focusing on assets that, if failed, could lead to operational disruptions or safety hazards.

c) Selecting Predictive Maintenance Technologies

With a plethora of predictive maintenance tools available, selecting the right technology stack is crucial. The selection process should consider the specific requirements of the identified assets and the types of data they can provide. For instance, IoT-based vibration sensors are ideal for rotating equipment.

It is important to note that vibration analysis in predictive maintenance strategies demand comprehensive spectral analysis, necessitating the acquisition of substantial data for effective analytics.

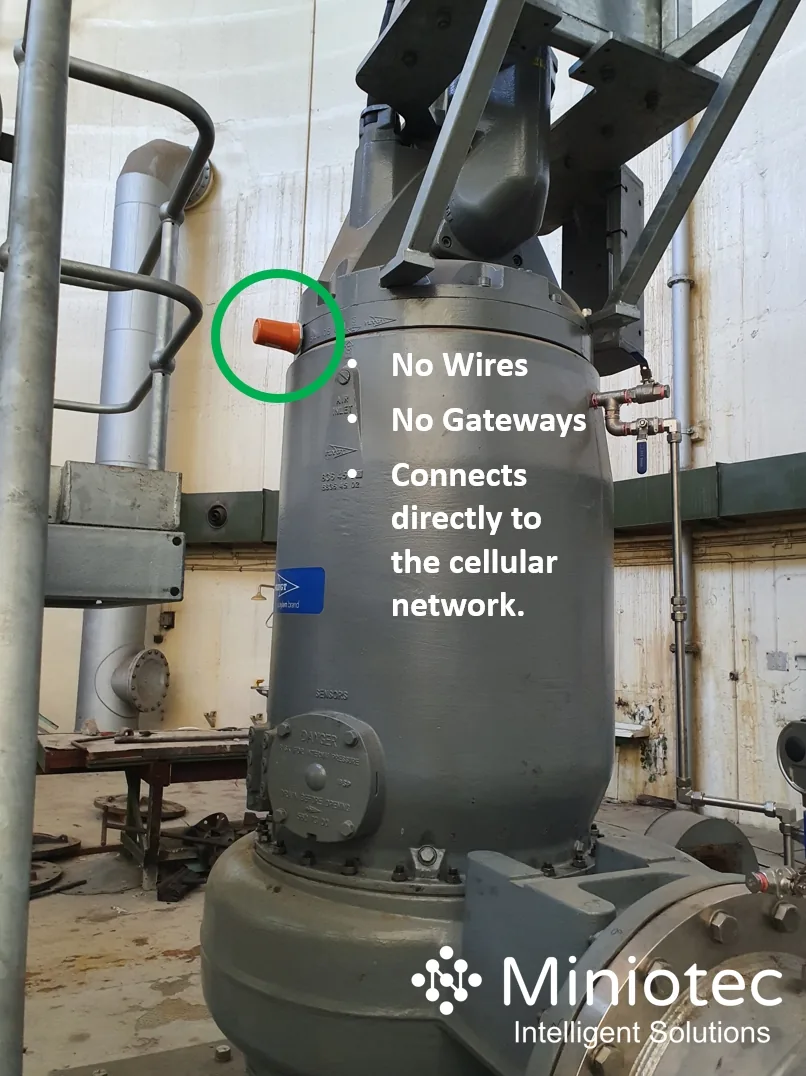

LTE sensors for predictive maintenance: no gateways needed, reducing installation costs and enabling full spectral data analysis with wide coverage - Miniotec
LTE sensors for predictive maintenance: no gateways needed, reducing installation costs and enabling full spectral data analysis with wide coverage.

LTE sensors stand out in this technological space, functioning akin to mobile phones that bypass the need for traditional gateways to connect to the Cloud network. This autonomy not only simplifies installation by eliminating wiring, power considerations, trenching and cable trays but also dispenses with the ongoing maintenance of gateways, thereby reducing costs significantly. LTE's capacity to transmit larger data packets with exceptional penetration and expansive coverage makes it an optimal choice. In contrast to other protocols, which primarily provide basic threshold alerts like peak vibration or temperature RMS data, LTE's robust framework supports a more intricate and discerning predictive maintenance analysis.

In addition, the chosen technology should seamlessly integrate with existing systems to provide a cohesive and comprehensive monitoring solution.

Gateway infrastructure often represents the heftiest slice of IIoT deployment costs. Opting for LTE sensor solutions circumvents this expense, presenting an economical and efficient framework for the most comprehensive data collection, analytics and lifecycle management.

d) Training and Skills Enhancement

Implementing PdM is not just about technology; it's more about people. Developing a team with the aptitude to understand and operate PdM technologies is fundamental. Training programs should be instituted to enhance the skillsets of maintenance and other reliability personnel, covering the operation of PdM tools, data analysis and decision-making processes. The aim is to foster a workforce that is not just technically proficient but also adaptable to the continuous evolution of maintenance technologies.

e) Ongoing Monitoring and Refinement

Predictive maintenance is not a 'set and forget' system. Continuous monitoring and analysis of asset performance data are imperative. This ongoing process helps in fine-tuning the PdM system, ensuring it remains attuned to the actual condition of the equipment. Regular audits of the PdM strategy and its outcomes are necessary to identify areas for improvement and to validate the effectiveness of the maintenance interventions.

Best Practices for Effective PdM Implementation

To ensure the successful deployment of a PdM program, several best practices should be considered:

  • Data Integrity: Ensure the data collected from sensors and monitoring tools is accurate and reliable.

  • System Integration: Integrate PdM tools with existing enterprise systems for a unified view of asset health.

  • Cross-functional Teams: Encourage collaboration between maintenance, IT and operations teams.

  • Change Management: Prepare the organisation for change with clear communication and by involving key personnel in the transition process.

  • Proactive Culture: Cultivate a maintenance culture that prioritises proactive measures over reactive fixes.

By adhering to these guidelines and continuously seeking to improve the PdM strategy, organisations can realise the full potential of predictive maintenance, leading to enhanced operational efficiency and reduced maintenance costs.

Predictive Maintenance vs. Other Maintenance Strategies

In the realm of asset management, maintenance strategies are fundamental to ensuring operational efficiency and prolonging asset life. The right maintenance strategy can significantly impact the bottom line, not just by preventing downtime but also by extending the usable life of equipment, thus maximising return on investment.

a) Reactive Maintenance

Reactive Maintenance, often termed 'run-to-failure', waits for equipment to break down before any maintenance is performed. This approach can be cost-effective for non-critical assets in the short term but often results in unpredictable downtime and higher repair costs.

Read our article on the True Cost of Deferred Maintenance.

b) Condition-Based Maintenance

Condition-Based Maintenance (CBM) is a step towards a more proactive maintenance regime. This strategy uses direct physical measurements to assess the equipment's condition, triggering maintenance activities only when certain indicators show signs of decreasing performance or upcoming failure.

c) Reliability-Centred Maintenance

Reliability-Centred Maintenance (RCM) involves a more detailed analysis. It seeks to determine the most efficient maintenance approach, considering cost-effectiveness and safety. This strategy aims to ensure that assets do what their users want in their present operating context, focusing on preserving system function, rather than just preserving the equipment.

d) Total Productive Maintenance

Total Productive Maintenance (TPM) aims for the perfect production process. It seeks to enhance equipment effectiveness, ensure safe production systems and build a workforce that is proactive about maintenance. TPM engages all employees from operators to senior management in maintenance and improvement activities.

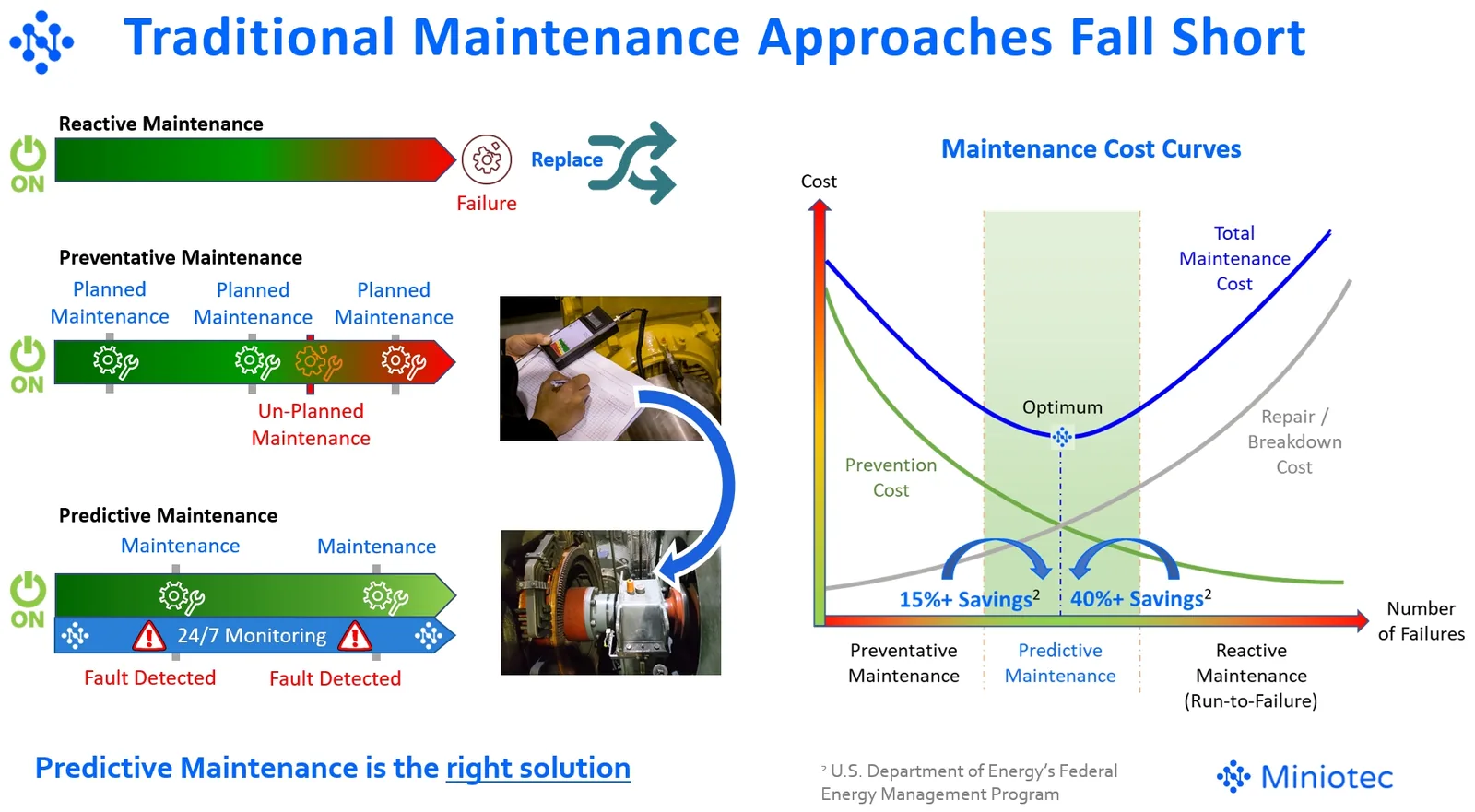

The clear benefits of PdM. The optimal maintenance strategy - Miniotec
The clear benefits of PdM. The optimal maintenance strategy.

Advantages and Disadvantages

Predictive Maintenance (PdM) stands out as the preferred asset maintenance strategy by utilising data-driven insights to predict equipment failure before it happens, thus allowing maintenance to be planned and reducing unplanned downtimes. However, it requires an initial investment in technology, sensors and training, which can be seen as a drawback compared to simpler strategies like reactive maintenance.

To provide a clear comparison, here's a comprehensive table outlining the differences between these maintenance strategies across various metrics:

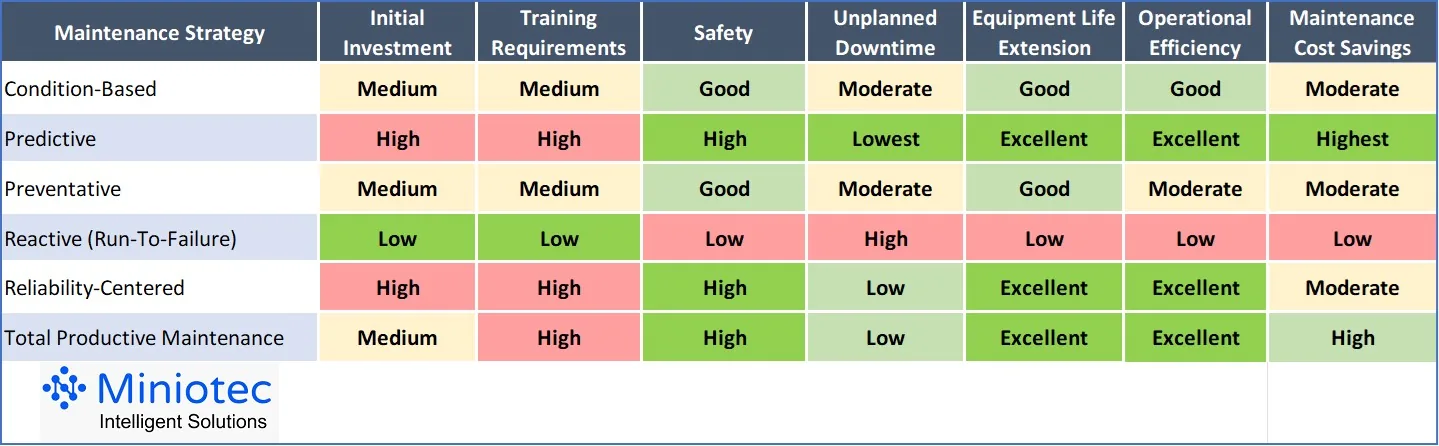

Table displaying a comparison of six maintenance strategies - Miniotec
Table displaying a comparison of six maintenance strategies.

In this matrix, PdM scores the most optimal strategy in almost all areas, particularly in reducing unplanned downtime and enhancing safety, due to its anticipatory nature. However, its initial investment and training requirements are also among the highest, which must be considered when selecting a maintenance strategy.

PdM is particularly suited to industries where equipment failure can result in significant safety risks, environmental incidents, or substantial revenue loss. It's less suited to non-critical assets where simple reactive maintenance could be more cost-effective. The decision to implement PdM should always be based on a cost-benefit analysis, considering the specific needs and context of the operation.

The Shift From Predictive Maintenance to Prescriptive Maintenance - A Brief Introduction

As the industrial sector continues to advance, a new frontier in maintenance emerges with the transition from Predictive to Prescriptive Maintenance. This progression is not merely a change in technology but a strategic change towards a more efficient and proactive maintenance culture.

Embracing the Digital Evolution in Maintenance

The industrial sector has witnessed a paradigm shift with the introduction of digital integration within its maintenance strategies. Traditional reactive maintenance has paved the way for Predictive Maintenance (PdM), a significant advancement in anticipating equipment failure. Yet, the trajectory of innovation doesn't halt here; the advent of Prescriptive Maintenance (PrM) marks a further evolution, setting a new standard for asset management.

Transitioning to Prescriptive Maintenance (PrM)

Prescriptive Maintenance transcends the capabilities of PdM by not only predicting failures but also prescribing definitive actions to circumvent them. PrM systems deliver real-time recommendations, guiding maintenance teams on specific corrective measures tailored to prevent impending failures or minimise their impact.

Key Differences Between PdM and PrM

The transition to PrM is not just about embracing new technology—it's about reaping the strategic benefits:

a) Depth of Analysis

PrM distinguishes itself by delivering not just forecasts, but actionable insights and detailed recommendations, thus providing a deeper level of analysis than PdM.

b) Decision Automation

A cornerstone of PrM is its ability to automate decisions. By integrating with control systems, PrM can initiate corrective actions without human intervention, streamlining the maintenance process and enhancing response times.

c) Complexity

The algorithms that power PrM are typically more complex than those used in PdM. They require a deeper integration with operational systems, drawing from a broader data set to generate their prescriptive analytics.

Benefits of Shifting to PrM

The shift to PrM is not merely a technological upgrade but a strategic enhancement with tangible benefits:

a) Enhanced Decision Making

PrM's clear-cut recommendations simplify the decision-making process, eliminating ambiguity and enabling faster, more informed decisions.

b) Increased Asset Longevity

The precise nature of PrM's recommendations can significantly prolong the life of equipment by addressing issues well before they escalate into failures.

c) Operational Efficiency

PrM's proactive approach ensures that maintenance efforts are not just predicted but are optimally prescribed, leading to improved performance and cost savings.

Challenges in Transitioning to PrM

Transitioning to PrM involves overcoming several hurdles:

  • Advanced Data Analytics: PrM requires sophisticated data analysis capabilities to process and interpret the large volumes of data it uses.

  • Integration with Control Systems: For PrM to function effectively, it must be seamlessly integrated with existing control systems, which can be a complex process.

  • Personnel Training: Staff must be trained not only to understand the output from PrM systems but also to trust and act upon the prescriptive advice given.

The shift from PdM to PrM is a strategic advancement in maintenance philosophies, offering significant benefits in operational efficiency, decision-making and asset longevity. However, the transition demands careful consideration of the technological and human factors involved, ensuring that the organisation is prepared to embrace this forward-thinking approach.

The Future: How AI will Positively Impact Maintenance Approaches

The Current Landscape of Maintenance Approaches

The maintenance approaches of today largely revolve around predictive and preventative strategies, with the integration of IoT and data analytics playing a pivotal role. However, the inclusion of Artificial Intelligence (AI) is beginning to transform these approaches, leading to more sophisticated, proactive and dynamic maintenance methodologies - example AIoT.

The Role of AI in Predictive Analytics and Failure Forecasting

AI is revolutionising predictive maintenance by enabling the analysis of vast datasets beyond human capability, resulting in highly accurate predictions of equipment failure. Machine learning algorithms can detect subtle patterns and anomalies that forecast potential issues before they occur, allowing for pre-emptive maintenance actions.

The New Frontier that is Generative AI in Maintenance

Core Principles of Generative AI

Generative AI refers to the subset of AI technologies that can generate new data instances that resemble the training data. This type of AI doesn't just predict; it creates and simulates based on learned data patterns.

Potential Applications of Generative AI

  • Simulating Wear and Tear: AI can simulate the wear and tear on machinery over time, predicting when and how equipment might fail, which aids in planning maintenance schedules more effectively.

  • Virtual Models for Stress Analysis: By creating virtual models, AI can analyse stress points on machine components, identifying potential failure points before they become an issue.

  • Predicting Outcomes of Maintenance Strategies: AI can create scenarios to help predict the outcomes of different maintenance strategies, guiding decision-makers on the optimal path to take.

Advantages of AI-Driven Maintenance

The adoption of AI in maintenance comes with compelling advantages:

  • Increased Efficiency: AI-driven maintenance approaches streamline the maintenance process, ensuring that equipment runs at peak efficiency and downtime is minimised.

  • Enhanced Safety: Timely AI interventions can prevent accidents and equipment failure, significantly improving workplace safety.

  • Long-term Cost Savings: Though there might be initial investments, the cost savings over time — due to reduced downtime and extended equipment life — can be substantial.

Challenges and Considerations in AI Implementation

Despite the clear benefits, integrating AI into maintenance processes is not without challenges:

  • Data Security: As AI systems require access to vast amounts of data, ensuring the privacy and security of this information is paramount.

  • Training and Skills: Maintenance personnel will need to be trained to understand and work alongside AI systems effectively.

  • Ensuring Reliability: It's crucial that the insights provided by AI are accurate and reliable, as maintenance decisions will be based on these predictions.

The future of maintenance, underpinned by AI, promises not only enhanced efficiency and safety but also a shift towards more sustainable and cost-effective management of assets. As these technologies advance, and AI continues to exponentially evolve, they will continue to redefine the boundaries of what's possible in maintenance optimisation.

In Summary

The evolution of maintenance strategies has entered a new era, one defined by foresight rather than hindsight. Predictive maintenance stands at the apex of this progression, exemplifying how the strategic use of technology can drive operational excellence. By harnessing the power of data and analytics, predictive maintenance enables a leap from reactive approaches to truly proactive asset management.

At the core of effective predictive strategies are three pivotal predictive maintenance technologies: vibration analysis, acoustic monitoring and oil analysis. These key pillar technologies uphold the foundation of predictive maintenance, each providing invaluable insights into the health of equipment.

Vibration analysis detects mechanical faults before they escalate. Acoustic monitoring listens for subtle whispers of change that signal wear and tear. Oil analysis offers a window into the mechanical heart of assets. Together, they form a formidable team of technologies that can detect problems at inception rather than at failure - all remotely and all 24/7 - 365.

The adoption of predictive maintenance signals more than just better asset management; it represents a cultural shift towards data-driven decision making. Maintenance schedules are dictated not by guesswork or routine but by the actual operating conditions of equipment. Resources are optimised where needed most. Personnel transition from passive observers to active analysts. It's a transformation that rewards organisations with increased productivity, longer-lasting assets and a competitive edge built on operational resilience.

This change does not come without effort. A successful predictive program requires investment in sensors, connectivity, data infrastructure and analytics tools. It also demands a skilled workforce and company-wide buy-in to leverage the full advantages. But for facilities that rely on complex machinery uptime for business continuity, the effort is well justified.

As Industry 4.0 continues to drive automation and IoT adoption, predictive maintenance is quickly becoming an indispensable strategy for asset-intensive sectors like manufacturing, oil and gas, mining, petrochemical, energy and the commercial building sectors. But it need not be limited to mammoth machinery. Even smaller organisations can benefit from a well-designed predictive program scaled to their needs and budgets. The technology exists today to collect condition data and extract insights even from individual pumps, motors and gear boxes.

For any organisation dependent on physical assets, the future is clear - it resides in utilising technology to know what will fail before it fails. Maintenance programs must continuously evolve, embracing innovations in AI and advanced analytics to push the boundaries of prediction. As competitive pressures and customer demands rise, the ability to forecast problems and minimise downtime will only grow more crucial.

The stage is set for organisations not just to be reactive, but predictively proactive. The tools for a new era in maintenance are ready and waiting to be adopted. Will you be at the forefront of this transformation, leveraging predictive technologies to gain a strategic advantage? Or will you cling to antiquated maintenance routines and risk being left behind? The choice is yours - between the comfort of the past or the opportunities of the future. The time for proactive maintenance is now. Seize it and reap the rewards.

Q&A: Integrating Predictive Maintenance into Modern Maintenance Management

Q1: How does predictive maintenance techniques enhance overall maintenance management?

Predictive maintenance techniques bolster maintenance management by forecasting potential issues before they escalate into failures, enabling the scheduling of corrective maintenance in a way that minimises downtime and extends the machine’s operational life.

Q2: What role does a Computerised Maintenance Management System (CMMS) play in predictive maintenance?

A CMMS is pivotal in predictive maintenance as it can help collect data, issue work orders and optimise maintenance scheduling. This integration ensures that maintenance resources are allocated efficiently, improving the MTBF (Mean Time Between Failures).

Q3: How can organisations use predictive maintenance to perform maintenance more effectively?

Organisations enhance maintenance effectiveness through predictive maintenance by utilising advanced condition monitoring techniques and sophisticated sensors. These tools proactively detect subtle changes in an asset’s operating conditions, enabling timely maintenance actions that forestall unplanned downtime and enhance operational efficiency.

Q4: Can predictive maintenance solutions integrate with existing maintenance software to improve operations?

Yes, predictive maintenance solutions can seamlessly integrate with existing maintenance software, creating a comprehensive maintenance management system that enhances visibility and control over maintenance and reliability operations.

Q5: What measures a motor’s supply voltage and operating current to determine potential issues in predictive maintenance?

In predictive maintenance, Motor Current Analysis (MCA) is the technique used to measure a motor's supply voltage and operating current, identifying potential issues and enabling early failure prediction through condition-based analysis.

Q6: How does predictive maintenance use different vibration patterns to maintain machinery?

Predictive maintenance utilises the analysis of different vibration patterns emitted by machinery to monitor the equipment's condition. These distinct patterns are indicators of mechanical issues such as misalignments, imbalances or bearing faults. By interpreting these vibrations, maintenance teams can identify and enact the best corrective maintenance actions proactively, preventing equipment failure and extending the machinery's operational life.

Q7: In what ways can predictive maintenance contribute to a safer work environment?

Predictive maintenance significantly contributes to a safer work environment by pre-emptively identifying potential equipment malfunctions, thereby preventing the occurrence of unsafe operating conditions and unexpected failures that could endanger personnel. For instance, by utilising condition-based monitoring, it ensures that machinery operates within safe parameters and maintenance can be strategically scheduled without exposing workers to undue risk. Furthermore, it mitigates the need for physical inspections in hazardous areas or challenging environments, keeping employees away from the line of fire and out of harm's way.

Q8: How can the oil and gas industry benefit from implementing a predictive maintenance method?

The oil and gas industry can reap significant benefits from implementing predictive maintenance methods, such as optimising maintenance resources, reducing costly downtimes and ensuring the reliability of critical infrastructure through measures like online oil analysis, wireless vibration analysis and other condition monitoring techniques.

Q9: What does MTBF mean, and why is it significant in successful predictive maintenance programs?

MTBF stands for Mean Time Between Failures, a metric used to analyse and improve the reliability of equipment. In successful predictive maintenance programs, a longer MTBF indicates better performance and reliability of equipment, which is a key goal of predictive maintenance.

Q10: How do predictive maintenance solutions optimise maintenance scheduling?

Predictive maintenance solutions optimise maintenance scheduling by using data from monitoring sensors and predictive algorithms to forecast when maintenance should be performed. This approach ensures maintenance is carried out just in time to prevent failures, thereby maximising uptime and equipment efficiency.

Q11: How does regular maintenance help in the context of predictive maintenance, and what does it rely on to forecast equipment failure?

Regular maintenance helps maintain the integrity and performance of equipment, which is crucial for predictive maintenance. Predictive maintenance relies on continuous analysis of data from sensors to detect early signs of wear or failure, allowing for well-timed predictive actions that avert costly downtime.

Q12: When exploring predictive maintenance, how crucial is the role of a sensor in determining the health of equipment, and what kind of analysis is used?

When exploring predictive maintenance, the role of sensors is vital as they provide the data needed to determine the health of equipment. The analysis used typically involves advanced algorithms and machine learning techniques to interpret sensor data, identify trends and predict potential failures.

How do you view the impact of Predictive Maintenance? Let us know your thoughts?

Stay safe.


About Miniotec:

Miniotec is a digital consulting and technology solutions provider, dedicated to supporting companies in their digital transformation journeys. Established by a group of experienced engineers, we emphasise the harmonious integration of people, processes and technology. Our team has a rich history of working across various sectors, from energy and resources to infrastructure and industry. We are trusted by the world's largest miners, oil and gas giants, utility companies and even budding start-ups and believe in the transformative power of the Industrial Internet of Things (IIoT) and its role in unlocking valuable data insights. Through IIoT, we aim to facilitate better decision-making, enhance operational activities and promote safer work environments. At Miniotec, our goal is to guide and support, ensuring every digital step is a step forward.


bottom of page
